過充電壓4.3V-4.475V可選，過放2.4V,放電過流9A,充電過流6A，持續放電電流4.3A，SOT23-5封裝，適用于5V 2.4A移動電源，電子煙等產品。
GENERAL DESCRIPTION
The XB5606A product is a high
integration solution for lithium
ion/polymer battery protection.
XB5606A contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.

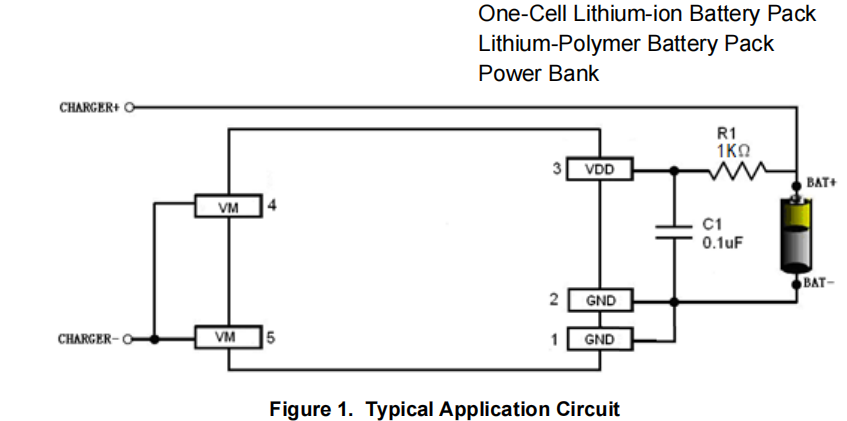

XB5606A is put into an ultra-small
SOT23-5 package and only one
external component makes it an ideal
solution in limited space of battery pack.
XB5606A has all the protection functions
required in the battery application including
overcharging, overdischarging, overcurrent
and load short circuiting protection etc. The
accurate overcharging detection voltage
ensures safe and full utilization charging.
The low standby current drains little current
from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection
·
Integrate Advanced Power MOSFET
with Equivalent of 17mΩ RSS(ON)
·
Ultra-small SOT23-5 Package
·
Only One External Capacitor
Required
·
Over-temperature Protection
·
Overcharge Current Protection
·
Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode: 3.9μ A typ.
- Power-down Mode: 2.2μ A typ.
·
RoHS Compliant and Lead (Pb) Free
