過充4.275-4.425V可選， 過放2.8V，充電過流0.8A，放電過流0.8A，持續放電電流0.4A，過放自鎖，DFN2*2封裝，適用于小容量電池產品以及保護板。
GENERAL DESCRIPTION
The XB6096 Series product is a high
integration solution for lithium
ion/polymer battery protection. XB6096
Series contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB6096 Series is put into an ultra-small
DFN2X2-6 package and only one
external component makes it an ideal
solution in limited space of battery pack.
XB6096 Series has all the protection
functions required in the battery application
including overcharging, overdischarging,
overcurrent and load short circuiting
protection etc. The accurate overcharging
detection voltage ensures safe and full
utilization charging. The low standby
current drains little current from the cell
while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.

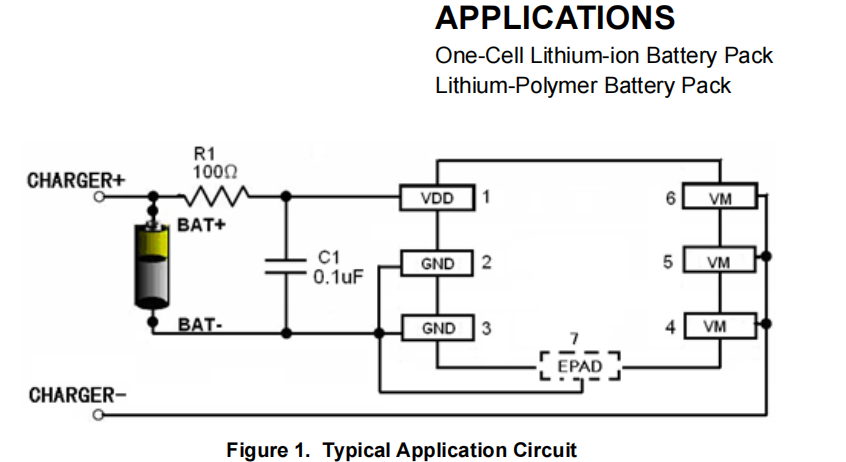

FEATURES
· Protection of Charger Reverse
Connection
· Protection of Battery Cell Reverse
Connection
· Integrate Advanced Power MOSFET
with Equivalent of 26mΩ RDS(ON)
· Ultra-small DFN2X2-6 Package
· Only One External Capacitor
Required
· Over-temperature Protection
· Overcharge Current Protection 0.95A
· Two-step Overcurrent Detection:
-Overdischarge Current 0.95A
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode: 1.5μA typ.
· RoHS Compliant and Lead (Pb) Free
