主要參數：過充4.275-4.475V可選,過放2.8-3.0V可選，放電過流0.95A，充電過流0.95A，最大持續放電電流0.5A，DFN1*1封裝，和賽芯所有同類型封裝都直接pin，外圍電路亦一樣，一顆電阻一顆電容，適用于TWS耳機，智能手表等產品。
GENERAL DESCRIPTION
The XB6092 series product is a high
integration solution for lithium
ion/polymer battery protection. XB6092
series contains advanced power
MOSFET, high-accuracy voltage
detection circuits and delay circuits.
XB6092 series is put into an
DFN1X1x0.37-4 package and only one

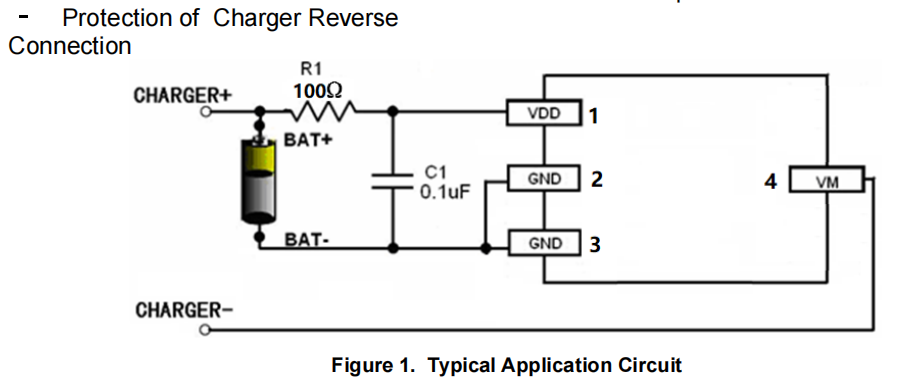

external component makes it an ideal
solution in limited space of battery pack.
XB6092 series has all the protection
functions required in the battery application
including overcharging, overdischarging,
overcurrent and load short circuiting
protection etc. The accurate overcharging
detection voltage ensures safe and full
utilization charging. The low standby
current drains little current from the cell
while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered
information appliances requiring long
term battery life.
FEATURES
·
Protection of Charger Reverse
Connection
·
Protection of Battery Cell Reverse
Connection
·
Integrate Advanced Power MOSFET
with Equivalent of 30mΩ RDS(ON)
·
DFN1X1x0.37-4 Package
·
Low Overcharge Release Voltage
·
Over-temperature Protection
·
Overcharge Current Protection 0.95A
·
Two-step Overcurrent Detection:
-Overdischarge Current 0.95A
-Load Short Circuiting
·
Charger Detection Function
·
0V Battery Charging Function
- Delay Times are generated inside
·
High-accuracy Voltage Detection
·
Low Current Consumption
- Operation Mode:1.5μ A Typ.
·
RoHS Compliant and Lead (Pb) Free
