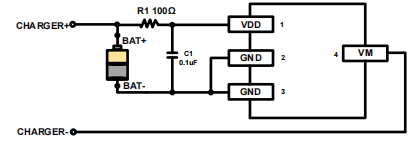

主要參數(shù)：過充4.275-4.475V可選,過放2.8-3.0V可選，放電過流0.4A，充電過流0.4A，最大持續(xù)放電電流0.2A，DFN1*1封裝，和賽芯所有同類型封裝都直接pin，外圍電路亦一樣，一顆電阻一顆電容，適用于TWS耳機(jī)，智能穿戴等產(chǎn)品。
GENERAL DESCRIPTION
The XB6060 series product is a high inte
-gration solution for lithium-ion/polymer bat
-tery protection. XB6060 series contains
advanced power MOSFET, high-accuracy
voltage detection circuits and delay circuit
s. XB6040 series is put into an DFN1X1x
0.37-4 package and only one external
component makes it an ideal solution in
limited space of battery pack.
XB6060 series has all the protection func
-tions required in the battery application
including overcharging, overdischarging,
overcurrent and load short circuiting protec
-tion etc. The accurate overcharging detect
-ion voltage ensures safe and full utilization
charging. The low standby current drains
little current from the cell while in storage.
The device is not only targeted for digital
cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered informa
-tion appliances requiring long-term battery
life.
FEATURES
Protection of Charger Reverse
Connection
Protection of Charger Reverse
Connection without external load
Integrate Advanced Power MOSFET
with Equivalent of 44mΩ RDS(ON)
DFN1X1x0.37-4 Package
Low Overcharge Release Voltage
Over-temperature Protection
Overcharge Current Protection 0.4A
Two-step Overcurrent Detection:
-Overdischarge Current 0.4A
-Load Short Circuiting
Charger Detection Function
0V Battery Charging Function
-Delay Times are generated inside
High-accuracy Voltage Detection
Low Current Consumption
-Operation Mode: 1.8μA typ.
RoHS Compliant and Lead (Pb) Free
ESD HBM:4KV
APPLICATIONS
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
Wearable Device
Bluetooth Earphone
